2024 Geelycv Super VAN XingFu

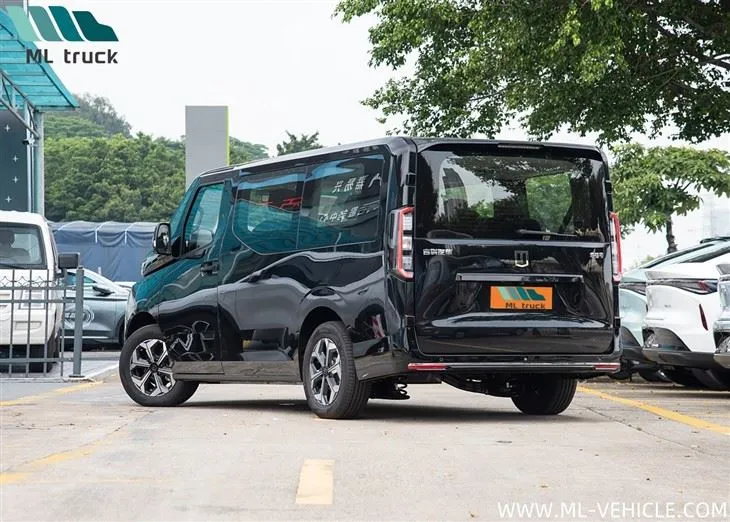

2024 Geelycv Super VAN features a highly futuristic design. Its closed grille highlights its new energy attributes, while the continuous light strip embedded with the brand logo ensures strong recognition when illuminated. The lower bumper extends forward, with decorative details enhancing its sporty feel. The vehicle boasts a minimum turning radius of 5.8 meters and a low drag coefficient of 0.29 Cd. Regarding dimensions, it offers three lengths (4990mm, 5490mm, 5995mm), a width of 1980mm, and three height options (1980mm, 2180mm, 2500mm), with wheelbases of 3100mm or 3600mm.

The maximum internal dimensions of the cargo area are 3690mm x 1795mm x 1960mm, providing a total interior space of 13.2 cubic meters, accommodating five standard 1200mm x 800mm Euro pallets. The new model features a 180 degree split tailgate, with an optional 270 degree version, allowing a side opening of up to 2.1 meters. The side sliding doors utilize a pillarless design, with an opening of up to 1.3 meters.

The 2024 Geelycv Super VAN features a brand-new urban efficient aesthetic design language, with a layered three-dimensional front design that appears both cute and functional. Combined with highly recognizable full LED headlights, it not only overturns traditional perceptions of light commercial vehicles but also impresses with its modern look.

The 2024 Geelycv Super VAN employs an industry-first high-load pillarless design, along with an oversized tailgate and side doors. Coupled with a minimum cargo floor height of 520mm, a 145mm ultra-thin battery, and a front double wishbone suspension, the vehicle offers class-leading loading capacity and the best cargo area utilization in its segment.

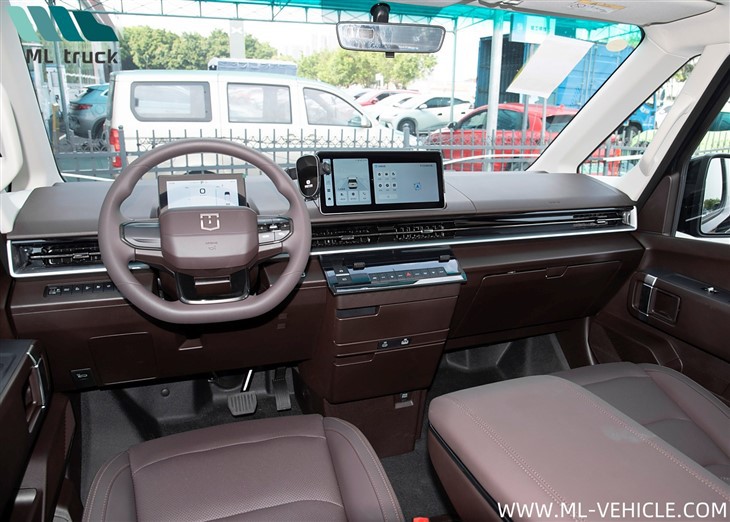

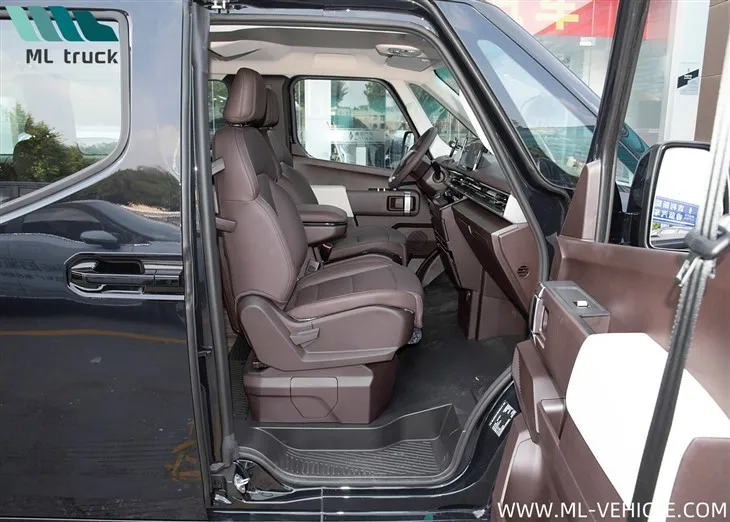

The interior of the new vehicle is relatively simple, equipped with a 12.3-inch large screen, a multifunctional steering wheel, and a digital instrument panel to further meet everyday needs. Due to varying dimensions, the new model offers multiple seating configurations, including 3+2+2 (7 seats), 2+2+2 (6 seats), and 3+2+2+2 (9 seats).

2024 Geelycv Super VAN has pre-installed anchoring holes on the side panels for shelving installation, with the position and quantity varying according to the vehicle size, allowing customers to opt for additional parts or DIY solutions based on their needs. Combined with accessories such as multi-hole slots, pull rings, straps, and net bags, along with cargo anchoring points on the floor, the cargo space is designed to meet a wide range of application requirements.

In terms of power, the new model will feature an electric motor with a maximum output of 200 kW and a peak torque of 343 Nm, available in front-wheel drive, rear-wheel drive, and all-wheel drive versions. The Geelycv Super VAN offers 80 kWh and 106 kWh battery packs, with a maximum range of 560 km and a minimum energy consumption of 17.1 kWh per 100 km. It can be charged for 20 minutes to gain an additional 300 km of range. Additionally, the new vehicle supports an external discharge power of up to 3.3 kW and a maximum of 10 kW for onboard power extraction.
